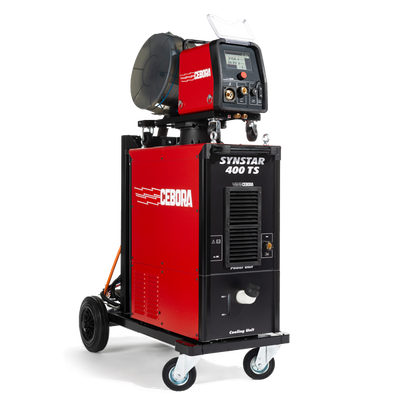

SYNSTAR 400 TS
[Art. 382]
INVERTER THREE-PHASE POWER SOURCE FOR MIG/MAG AND MMA WELDING
400 V +15%/-20% 50/60 Hz
Benefits
User-friendly LCD touchscreen Display
Pre-arranged for Pulse and Double Pulse functions
4-roller wire feed unit
Software updating in few seconds
Our power sources have got International Certifications and Approvals
Download
Lista curve sinergiche / List of the synergic curves
(PDF, 125.4 KB)
Eco Energy Card
(PDF, 127.6 KB)
Esploso + Lista ricambi / Parts breakdown + Parts list
(PDF, 7.0 MB)
Depliant family SYNSTAR
(PDF, 9.4 MB)
Parts and support
Count on our fast support, maintenance and parts supply services to ensure work continuity.
Extend your warranty!
Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.
Choose MIG/MAG Cebora
Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo
SYNSTAR 400 TS
The new SYNSTAR 330 TS is a synergic inverter three-phase power source for MIG/MAG and MMA welding, with 4-roller Cebora wire feed unit
- Aluminium 4-roller wire feed unit (Ø 37 mm)
- Equipped with cooling unit and with power source transportation trolley, ground lead ( 3 m - 70 mm2) and clamp
-
The yield of this power source is the highest among the comparable ones and allows to obtain a maximum current of 400 A at 100% of the duty cycle (10 min. 40°C), according to IEC 60974-1 standards absorbing about 25 A from the mains power supply.
- The power source has many adjustable functions which can be accessed from 5 ” colour Display Touchscreen, including:
- Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start, post-pre gas, etc.
- SHORT or PULSE function
- Three importants specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler) - Welding programs for wires ø 0,8/1,0/1,2/1,6 mm., and also for pulsed synergic programs
- MIG SHORT HD (High Deposit)
- Upgrade MIG Pulse and HD Pulse [Art. 238]
- Upgrade MIG double current level function [Art. 813]
- Upgrade MIG Double Pulse [Art. 238+813]
-
Electrodes that can be used Ø 1,5 ÷ 6,0
- Firmware update through USB port and RS 232
- Prearranged for integration into simple automation via optional analog interface kit (Art. 456)
| Art. | 382 | Dati tecnici | ||
|---|---|---|---|---|
|
MIG/MAG |
MMA |
|
||
 |
400 V +15% / -20% |
400 V +15% / -20% |
Alimentazione trifase |
|
 |
25 A |
25 A |
Fusibile ritardato |
|
 |
17,5 kVA |
17,5 kVA |
Potenza assorbita |
|
 |
10 ÷ 400 A |
10 ÷ 380 A
|
Corrente min.-max. ottenibile in saldatura |
|
 |
400 A 100% |
380 A 100% |
Fattore di servizio (10 min. 40° C) |
|
 |
Electronic |
|
Regolazione continua |
|
 |
0,8/1,0/1,2/1,6 Fe |
|
Filo utilizzabile |
|
 |
Ø 300 mm/18 kg |
|
Bobina filo trainabile max. |
|
 |
IP23S |
|
Grado di protezione |
|
 |
111 kg |
|
Peso |
|
 |
527x1078x1398 mm |
|
Dimensioni (LxPxH) |
|
-
'CEBORA 500 A’ torch - Water-cooled
[Art. 1243] -
'CEBORA 500A’ (UP/DOWN) torch - Water-cooled
[Art. 1245] -
Digital-analogue adapter kit for UP/DOWN torch connector
[Art. 2053] -
Shipyard
[Art. 1665] -
Analog interface kit
[Art. 456] -
Kit driver PUSH-PULL
[Art. 447] -
Flowmeter with 2 pressure gauges
[Art. 1450] -
Connection between power source and wire feeder unit
[Art. 2069] -
Aluminium kit
[Art. 1933] -
4.3 m sheath assembly for aluminium wire
[Art. 1930] -
Calibration certificate
[Art. 803]
