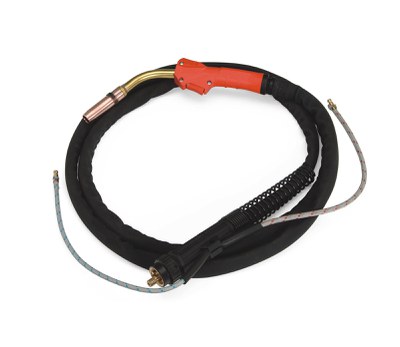

'CEBORA 500A’ (UP/DOWN) torch - Water-cooled

[Art. 1245]

Torcia 'CEBORA 500A' UP/DOWN - Raffreddata ad acqua

Mandatory combined with the analog / digital UP / DOWN adapter KIT [Art. 2053]

Art.

Specifications

500 A 100%

Duty cycle (10 min. 40° C)
according to IEC 60974.1

3,5 m Length
missing image file 3,500 kg Weight

Art. Description
2709 Contact tip Ø 0.6 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
2710 Contact tip Ø 0.8 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1824 Contact tip Ø 0.9 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1813 Contact tip Ø 1.0 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1814 Contact tip Ø 1.2 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1815 Contact tip Ø 1.4 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1816 Contact tip Ø 1.6 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1817 Contact tip Ø 0.8 for Fe/stainless steel/cored wire/CuSi3-AlBz8 (10 pcs.)
1822 Contact tip Ø 0.8 for aluminium (10 pcs.)
1825 Contact tip Ø 0.9 for aluminium (10 pcs.)
1819 Contact tip Ø 1.0 for aluminium (10 pcs.)
1820 Contact tip Ø 1.2 for aluminium (10 pcs.)
1821 Contact tip Ø 1.6 for aluminium (10 pcs.)
1839 Welding gas nozzle
1955 Gas diffuser
1864 Swan neck
1965 Contact tip support
2335 Insulating washer for contact tip support
1926 Wire guide liner kit Ø 1.0-1.2 for Fe/stainless steel/cored wire
1927 Wire guide liner kit Ø 1.2-1.6 for Fe/stainless steel/cored wire
1933 Aluminium welding kit consisting of 4.3 m wire liner assy for 1.0-1.2 mm wire and wire guide pipe
1930 3.5 m wire liner assy for 1.2-1.6 mm aluminium wire
