• Top-quality ARM microprocessor
• New and extremely reliable hardware e software
• Flexibility in the adjustment of the cutting current
• USB port for the software update
• CP 455G Torch that allows you to cut up to 55° tilt angle.
  A single torch for 2D cutting [Art. 1642],  3D cutting [Art. 1640] and Robot [Art. 1639] with a single family of consumables renewd and usable for both straight and bevel cutting
• New manual gas console with a modular system consisting of three units, of which two optional:
  • PGC-D: main console with 7" touchscreen panel and USB port to program cutting parameters for any possible combination of material and gas
  • PGC-H2: optional console dedicated to cutting Stainless Steel and Aluminium cutting with Hydrogen mixtures
  • WSC: optional console for Stainless Steel and Aluminium cutting using water like a secondary fluid
• Automatic gas console APGC to control in real-time all the gas flows and the automatic switch between cutting and marking
• HQC CONTROL PANEL, a digital touchscreen remote control panel (suitable for automatic partially integrated systems )

--

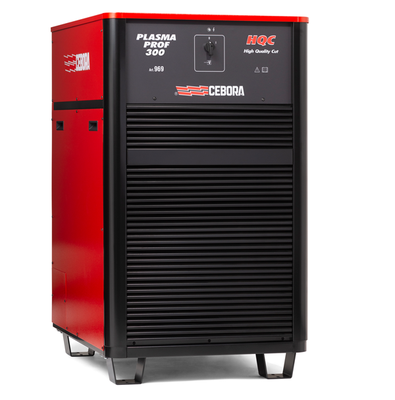

• Art. 969.00  Power source version with Analogic Digital interface
• Art. 969.40  Power source version with CANopen Digital interface
• Art. 969.41   Power source version with PROFIBUS Digital interface
• Art. 969.42  Power source version with DeviceNet Digital interface
• Art. 969.43  Power source version with EtherCAT Digital interface
• Art. 969.44  Power source version with EtherNet/IP Digital interface

•

  CEBORA CP 455G torch SHIELDED for Robot

  [Art. 1639]

  Accessories

  CEBORA CP 455G torch SHIELDED for Robot

  [Art. 1639]

  • [Art. 1639.02]  CEBORA CP 455 G Shielded torch for Robot (294 mm) - 1,6 m. Without consumables

  Show more

•

  CEBORA CP 455G torch (294 mm)

  [Art. 1640]

  Accessories

  CEBORA CP 455G torch (294 mm)

  [Art. 1640]

  CP455G Bevel torch short handle for CNC machine. Without consumables.

  • [Art. 1640.05] Bevel torch short sleeve (294 mm) for CNC machine - 5 m
  • [Art. 1640.07] Bevel torch short sleeve (294 mm) for CNC machine - 7.5 m
  • [Art. 1640.09] Bevel torch short sleeve (294 mm) for CNC machine- 9 m
  • [Art. 1640.12] Bevel torch short sleeve (294 mm) for CNC machine - 12 m

  Show more

•

  CEBORA CP 455G torch (386 mm)

  [Art. 1642]

  Accessories

  CEBORA CP 455G torch (386 mm)

  [Art. 1642]

  CEBORA CP 455G Bevel torch long handle for CNC machine. Without consumables

  • [Art. 1642.02] Bevel torch long handle (386 mm) with art. 459 for CNC machine  - 1,5 m
  • [Art. 1642.05]  Bevel torch long handle (386 mm) for CNC machine - 5 m
  • [Art. 1642.07]  Bevel torch long handle (386 mm) for CNC machine - 7.5 m
  • [Art. 1642.09]  Bevel torch long handle (386 mm) for CNC machine - 9 m
  • [Art. 1642.12]  Bevel torch long handle (386 mm) for CNC machine - 12 m

  Show more

•

  PGC-D manual gas console

  [Art. 480]

  Accessories

  PGC-D manual gas console

  [Art. 480]

  PGC-D manual gas console for Air, O2, N2, Ar.

  Show more

•

  APGC - Automatic gas console

  [Art. 466.01]

  Accessories

  APGC - Automatic gas console

  [Art. 466.01]

  Possibility to use the console with [Art. 460.01]

  Show more

•

  Connection between power source and gas console

  [Art. 1189]

  Accessories

  Connection between power source and gas console

  [Art. 1189]

  Connection between power source and gas console

  • [Art. 1189.01] Length 1.5 m
  • [Art. 1189.10] Length 12 m
  • [Art. 1189.20]  Lenght 18 m

  Show more

•

  Gas valve unit

  [Art. 469]

  Accessories

  Gas valve unit

  [Art. 469]

  Gas valve unit

  Show more

•

  Gas connection between console and gas valve unit

  [Art. 1166]

  Accessories

  Gas connection between console and gas valve unit

  [Art. 1166]

  Gas connection between manual console [Art. 480] or automatic console [Art. 466] and gas valve unit [Art. 469 or Art. 459]

  • [Art. 1166.01] Length 6 m.
  • [Art. 1166.02] Length 9 m.
  • [Art. 1166.10] Length 12 m.
  • [Art. 1166.20] Length 20 m.
  • [Art. 1166.25] Length 25 m.
  • [Art. 1166.30] Length 30 m.

  Show more

•

  HV 19/1 ignition unit

  [Art. 464]

  Accessories

  HV 19/1 ignition unit

  [Art. 464]

  HV 19/1 ignition unit

  Show more

•

  Connection between power source and ignition unit

  [Art. 1169]

  Accessories

  Connection between power source and ignition unit

  [Art. 1169]

  Connection between power source and ignition unit [Art. 469 or Art. 459]

  • [Art. 1169.01] Length 6 m.
  • [Art. 1169.02] Length 9 m.
  • [Art. 1169.10] Length 12 m.
  • [Art. 1169.20] Length 18 m.
  • [Art. 1169.30] Lunghezza 27 m.
  • [Art. 1169.60] Lunghezza 30 m.

  Show more

•

  HF unit + gas valves (CNC)

  [Art. 459]

  Accessories

  HF unit + gas valves (CNC)

  [Art. 459]

  Ignition unit / HV plasma valves 19/PVC for CNC.
  This integrates HF ignition unit (Art. 464) and gas valve unit (Art. 469) in a single component.
  The unit can be fitted directly on the portal, thus allowing installation of a single standard short plasma torch, irrespective of portal size.

  Show more

•

  HF unit + gas valves (Robot)

  [Art. 462]

  Accessories

  HF unit + gas valves (Robot)

  [Art. 462]

  Plasma ignition/valve unit HV19/PVC for ROBOT

  Show more

•

  PGC-H2 manual gas console

  [Art. 487]

  Accessories

  PGC-H2 manual gas console

  [Art. 487]

  PGC-H2 manual gas console for H35, F5.

  To be coupled only to [Art.480]

  Show more

•

  WSC - Water Secondary Console

  [Art. 485]

  Accessories

  WSC - Water Secondary Console

  [Art. 485]

  WSC - Automatic Water Secondary Console is an ideal solution for plasma cutting of stainless steel and aluminium.
  To be coupled with [Art. 480] or [Art. 466]

  Show more

•

  Remote panel for automatic gas console

  [Art. 460.01]

  Accessories

  Remote panel for automatic gas console

  [Art. 460.01]

  Optional touch screen remote panel for APGC automatic gas console.

  Use exclusively with automatic gas console, Art. 466

  Show more

•

  Connection between power source and panel

  [Art. 1199]

  Accessories

  Connection between power source and panel

  [Art. 1199]

  Connection between power source and touch screen control panel [Art. 460.01].

  • [Art. 1199] Length 5 m.
  • [Art. 1199.20] Length 10 m.
  • [Art. 1199.50] Length 20 m.

  Art. 460.01 with connection to Art. 1199, can be used only with automatic console gas 466.

  Show more

•

  Extended analog interface kit

  [Art. 425]

  Accessories

  Extended analog interface kit

  [Art. 425]

  Extended analog interface kit

  Show more

•

  Work return lead (12 m - 70 mm²)

  [Art. 1289.10]

  Accessories

  Work return lead (12 m - 70 mm²)

  [Art. 1289.10]

  Work return lead  (12 m - 70 mm²)

  Show more

•

  Coolant

  [Art. 1514]

  Accessories

  Coolant

  [Art. 1514]

  Two packs containing 5 litres each of coolant.

  Show more
