MIG/MAG Inverter Single phase

EASY PULSE 200 M

[Art. 398]

INVERTER SINGLE-PHASE COMPACT POWER SOURCE FOR MIG/MAG WELDING

icons8-electrical-35.png 230 V 50/60 Hz +15% / -20%

Benefits

Simple and intuitive LCD display

80 synergic curves included

Pulse and double pulse functions included

Professional 4-roller wire feeder unit

Our products boast international homologations and approvals

Download

Eco energy card art. 398
(PDF, 679.8 KB)
Flyer
(PDF, 708.7 KB) Art. 398
Lista curve sinergiche / List of the synergic curves
(PDF, 166.2 KB)
Esploso + Lista ricambi / Parts breakdown + Parts list
(PDF, 2.0 MB)

Parts and support

Count on our fast support, maintenance and parts supply services to ensure work continuity.

Request support Original parts

Extend your warranty!

Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.

Register your product

Choose MIG/MAG Cebora

Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo

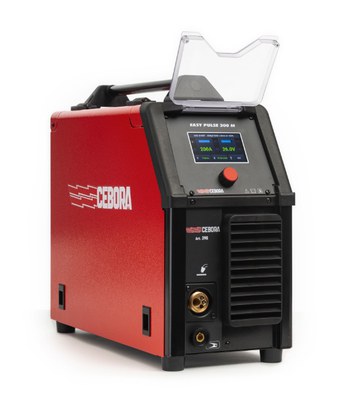

EASY PULSE 200 M

Single-phase inverter power source for MIG/MAG welding with professional 4-roll wire feeder.
› 4.3" color display and USB port for software updates.
› 80 preset synergic programs (SHORT and PULSE).
› Included processes:

  • MIG SHORT process (double current level)

  • MIG PULSE and DOUBLE PULSE.
    › Internal ± polarity reversal (for flux-cored wires).
    › Reduced consumption and maximum efficiency (extension cables).
    › Standby power consumption (18 W).
    › 4-roll wire feeder (optimal wire feeding).

Art. 398 Dati tecnici

230 V +-20%
50/60 Hz

Alimentazione monofase
Single phase input

16 A

Fusibile ritardato
Fuse rating (slow blow)

6,3 kVA 20%
3,8 kVA 60%
3,1 kVA 100%

Potenza assorbita
Input power

20 ÷ 200 A

Corrente min.-max. ottenibile in saldatura
Min.-max. current that can be obtained in welding

200 A 20%
140 A 60%
120 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

Electronic

Regolazione continua
Stepless regulation

0,6/0,8/0,9/1,0/1,2 Fe-Inox
0,9 Flux Cored
0,6/0,8/0,9/1,0/1,2 Al
0,8/0,9/1,0 CuSi3%
1,2 AlSiC(4145)

Curve sinergiche in dotazione standard
Standard supplied synergic programs

Ø 200 mm/5 kg

Bobina filo trainabile max.
Max. wire spool size

IP23S

Grado di protezione
Protection class

18 kg

Peso
Weight

232x568x478 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)
