WIN TIG DC 180 M

[Art. 551]

INVERTER SINGLE PHASE COMPACT POWER SOURCE FOR MMA AND DC TIG WELDING. HIGH FREQUENCY IGNITION

icons8-electrical-35.png  230 V 50/60 Hz + 15%/-20%

Benefits

Pots that regulate functions

Mainly designed for small production batches

Our power sources have got International Certifications and Approvals



Scegli il TIG Cebora

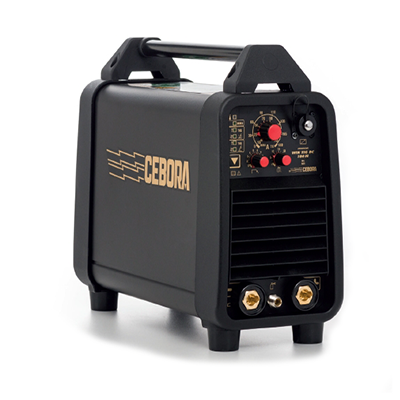

WIN TIG DC 180 M

Inverter single phase power source for TIG and MMA/SMAW welding except for AWS6010 coated electrodes. (Special black edition)

Mainly designed for maintenance and repair works, as well as for small production batches

  • The welding current can be adjusted from 5 to 180 A
  • Two potentiometers allow respectively the slope down and the post-gas function adjustment
  • In TIG mode, the arc ignition starts either on high frequency or by contact through the 'Cebora lift'

Art. 551 Technical Specifications

TIG

MMA

230 V 50/60 Hz
+ 15% / -20%

Alimentazione trifase
Three phase input

16 A



Fusibile ritardato
Fuse rating (slow blow)

4 kVA 35%
2,7 kVA 60%
2,2 kVA 100%

4,6 kVA 30%
3,5 kVA 60%
2,8 kVA 100%

Potenza assorbita
Input power

5 ÷ 180 A

 10 ÷ 140 A

Campo di regolazione della corrente
Current adjustment range

180 A 35%
135 A 60%
110 A 100%

140 A 30%
115 A 60%
95 A 100%



Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

IP23S

Grado di protezione
Protection class

10,3 kg

Peso
Weight

171x420x340 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)

  • Chemical industry
  • Light metal fabrication
  • Handcrafting
  • Food industry
  • Body shop
  • Industrial & Energy plant
  • Routine maintenance
  • Agricultural industry
