WIN TIG AC-DC 340 T ROBOT

[Art. 395.80]

INVERTER THREE-PHASE COMPACT POWER SOURCE FOR TIG AC-DC WELDING. HIGH FREQUENCY IGNITION

icons8-electrical-35.png  400 V 50/60 Hz  ±15 %

Benefits

User-friendly LCD touchscreen Display

Equipped with XP, APC and DC TIG functions

TIG AC, MIX AC+DC and Synergic Waveform functions

Remote control and data backup

Compliant with Industry 4.0

AC Frequency is now adjustable from 50 to 200 Hz

Our power sources have got International Certifications and Approvals



Scegli il TIG Cebora

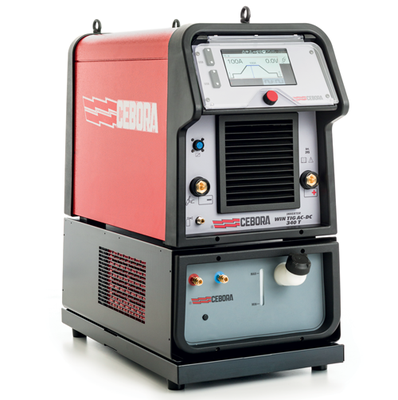

WIN TIG AC-DC 340 T ROBOT

Inverter three-phase (400 V 50/60 Hz ± 10%) pulse and direct DC-AC TIG welding power source. High Frequency Ignition

  • 7” LCD touchscreen multilanguage Display
  • Equipped with cooling unit
  • Equipped with robot digital CANopen interface; Further digital or analogic interfaces on request
  • WF5 COLD WIRE wire feeder unit for cold wire process, also in synchronous pulsed mode with welding current
  • Pulse function to be adjusted up to 2,5 kHz
  • eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal
  • Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses
  • JOB function which makes it possible to save up to 99 welding programs
  • It is possible to adjust independently the amplitude and the percentage of the semiwaves to obtain the desired penetration/ cleaning and a minor rounding on the tip of the electrode
  • AC Frequency adjustable from 5 to 200 Hz
  • Possibility to choose in AC mode any combination of the three waveforms
  • Easily removable cooling grille
  • Compliant with Industry 4.0 the new hardware structure implements a web server (through the Ethernet LAN port or, with an external kit, via Wi-Fi) that allows the operator to carry out all those activities that require the collection and processing of data, welding parameters configuration, diagnostics and remote assistance
  • 2 USB ports for download and software update
  • Remote control mode from personal computer, tablet or smartphone
  • Equipped with digital ammeter/voltmeter with 1% accuracy and thermal protection devices

Art. 395.80 Technical Specifications

TIG

PLASMA WELDING

400 V 50/60 Hz
± 15%

400 V 50/60 Hz
± 15%

Alimentazione trifase
Three-phase input

16 A

16 A

Fusibile ritardato
Fuse rating (slow blow)

11,3 kVA 40%
10,3 kVA 60%
9,7 kVA 100%

11,3 kVA 40%
10,3 kVA 60%
9,7 kVA 100%

Potenza assorbita
Input power

3 ÷ 340 A

10 ÷ 270A

Campo di regolazione della corrente
Current adjustment range

340 A 40%
320 A 60%
310 A 100%

270 A 40%
250 A 60%
240 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

IP23S

Grado di protezione
Protection class

80 kg

Peso
Weight

410x790x810 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)

  • Chemical industry
  • Heavy metal fabrication
  • Construction
  • Building and road construction industry
  • Handcrafting
  • Food Industry
  • Industrial & Energy plant
  • Construction of agricultural,railway and heavy vehicles
  • Routine maintenance
  • Agricultural industry
  • Off-shore industry
