WIN TIG AC-DC 340 T

[Art. 395]

INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MMA AND TIG AC-DC WELDING. HIGH FREQUENCY IGNITION

icons8-electrical-35.png  400 V 50/60 Hz  ±15 %

Benefits

User-friendly LCD touchscreen Display

Equipped with XP, APC and DC TIG functions

TIG AC, MIX AC+DC and Synergic Waveform functions

Remote control and data backup

Compliant with Industry 4.0

AC Frequency is now adjustable from 50 to 200 Hz

Our power sources have got International Certifications and Approvals



Choose TIG Cebora

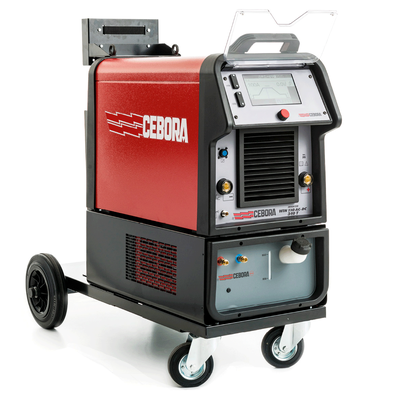

WIN TIG AC-DC 340 T

Inverter three-phase ( 400 V 50/60 Hz ± 15%) power source for AC-DC TIG and MMA. High Frequency Ignition

  • 7” LCD touchscreen Display
  • Equipped with transportation trolley and cooling unit
  •  EVO LIFTfunction allowsto place the electrode in the exact position avoiding the piece oxidation and the heat control
  • EVO START function in order to optimize edge junction
  • APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
  •  intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
  •  Pulse functionto be adjusted up to 2,5 kHz
  • eXtra Pulse (XP) function: avery high frequence pulse that works on small thicknesses where the transferred heat must be minimal
  • Possibility to match a low pulse frequence to the  XP process in order to improve the penetration and the welding speed on small-medium thicknesses.
  • JOB function which makes it possible to save up to 99 welding programs
  • Minimum DC current equal to 3 A
  • In AC TIG mode, tit is possible to independently adjust the width and duration of the penetration and cleaning of half-waves
  • AC+DC TIG process for aluminium welding and its alloys
  • AC frequency from 50 to 200 Hz
  • In AC mode, possibility of selecting several combinations of the three waveforms (square, triangular, sine-wave)
  • AC MMAwelding process suitable for welding electrodes on magnetized sheet metal, prevents the "magnetic blow" in the welding of iron boxes and it is usually employed in maintenance work
  • VRD function: reduces the vacuum voltage ensuring the use of the welding machine in environments with high electrical risk thus offering maximum safety to the operator
  • Easily removable cooling grille
  • Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
  • Remote control mode from personal computer, tablet or smartphone
  • Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices

[Art. 395.55] Strong version on request with 50/60 Hz, (200) – 220 – 440 – 480 V, three-phase autotransformer

Art. 395 Technical Specifications

TIG

MMA

400 V 50/60 Hz
± 15%

Alimentazione trifase
Three-phase input

16 A

20 A

Fusibile ritardato
Fuse rating (slow blow)

11,3 kVA 40%
10,3 kVA 60%
9,7 kVA 100%

13,1 kVA 40%
12,1 kVA 60%
11,5 kVA 100%

Potenza assorbita
Input power

3 ÷ 340 A

10 ÷ 310 A

Campo di regolazione della corrente
Current adjustment range

340 A 40%
320 A 60%
310 A 100%

310 A 40%
290 A 60%
280 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

IP23S

Grado di protezione
Protection class

109 kg

Peso
Weight

588x1120x1010 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)
