WIN TIG AC-DC 230 M
230 V +15%/-20% 50/60 Hz INVERTER SINGLE PHASE COMPACT POWER SOURCE FOR DC-AC TIG AND MMA WELDING. HIGH FREQUENCY IGNITION
Benefits
User-friendly LCD touch screen display
Evo Lift Ignition for a even more precise arc ignition
TIG functions available
Pulse TIG AC-DC as standard
Our power sources have got International Certifications and Approvals
Download
Parts and support
Count on our fast support, maintenance and parts supply services to ensure work continuity.
Extend your warranty!
Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.
Choose TIG Cebora
WIN TIG AC-DC 230 M
WIN TIG AC-DC 230 M is an inverter single phase power source for TIG and MMA/SMAW welding
- User-friendly 5" LCD touch screen display
- New cooling unit and trolley for transportation
- EVO LIFT function allows to place the electrode in the exact position avoiding the piece oxidation and the heat control
- EVO START function in order to optimize edge junction
- APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
- Intermittence pause time welding function which makes welding clearer with a time regulation in a second cents range
- DC TIG process with a minimum current of 3 A useful to carryover operations on metal mould edges.
- AC TIG process with minimum current of 5 A that allows coating on very thin aluminum parts
- DC PULSE process as standard
- eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal
- TIG MIX (AC+DC) process for improved welding on cold workpieces.
- Fast spot welding with minimal heat input due to the specific function that allows accurate adjustment (in 10 ms steps) of welding time and intermittent time suitable for DC and AC spot welding work on thin sheets.
- VRD (Voltage Reduction Device) function: in MMA mode, enhances safety in dangerous environments.
- JOB function which makes it possible to save up to 99 welding programs
- USB port
- Prearranged for integration into simple automation via optional analog interface kit (Art. 456)
- Remote control panel kit. To be compulsorily coupled to art. 2065 (Art. 457)
-
BINZEL 'ABITIG 200’ TIG torch
[Art. 1260] -
BINZEL 'ABITIG 200' UP/DOWN TIG torch
[Art. 1262] -
BINZEL 'ABITIG 450 W’ TIG torch
[Art. 1256] -
BINZEL 'ABITIG 450 W' UP/DOWN TIG torch
[Art. 1258] -
Analog interface kit
[Art. 456] -

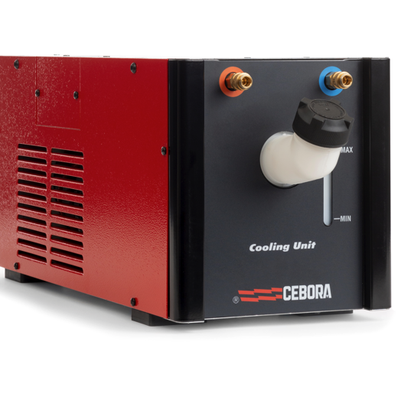

GVR20 cooling unit
[Art. 1685] -
Connection between power source and control panel
[Art. 2065] -

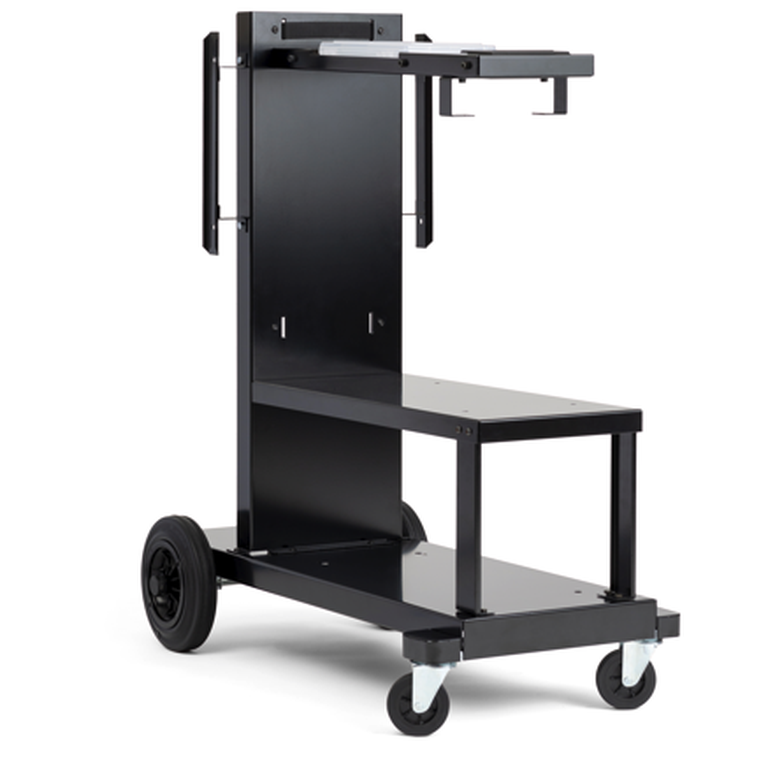

Power source transport trolley
[Art. 1676] -
Remote control for regulating welding current
[Art. 187] -
5 m extension cable for remote control
[Art. 1192] -
Pedal control for regulating welding current
[Art. 193] -
Work return lead (3,5 m - 25 mm²)
[Art. 2072] -
Connection linking torch and pedal control
[Art. 1180] -
Flowmeter with 2 pressure gauges
[Art. 1450] -
Calibration certificate
[Art. 803]
Art. | 559 | Technical Specifications | ||
---|---|---|---|---|
TIG | MMA | |||
230 V |
230 V 50/60 Hz +15% / -20% |
Alimentazione monofase |
||
16 A |
16 A |
Fusibile ritardato |
||
5,7 kVA 30% |
6,2 kVA 40% |
Potenza assorbita |
||
3 ÷ 230 A |
10 ÷ 180 A |
Campo di regolazione della corrente |
||
230 A 40%
|
180 A 30% 140 A 60% 120 A 100% |
Fattore di servizio (10 min. 40° C) |
||
IP23S |
Grado di protezione |
|||
21,5 kg |
Peso |
|||
232 x 530 x 467 mm |
Dimensioni (LxPxH) |
- Light metal fabrication
- Handcrafting
- Food industry
- Body shop
- Industrial & Energy plant
- Routine maintenance
- Agricultural industry
- Construction of tanks
- Off-shore industry
