Plasma Inverter Single phase

Sectors

Industry, Automotive

POWER PLASMA 3035/M

[Art. 279]

MULTI-VOLTAGE INVERTER SINGLE PHASE POWER SOURCE FOR PLASMA CUTTING. ‘ON AIR’ IGNITION

 115 V - 230 V  50/60 Hz   +15/-20%

 Thickness on mild steel:
         8 mm: quality & productivity cutting
         12 mm: maximum thickness
         15 mm: severance

Benefits

“Pilot Self Restart” function selectable on the front panel

Possibility to work even on painted or coated metals

Our power sources have got International Certifications and Approvals



Download

Brochure POWER PLASMA 3035 M Art.279 C371 IT-EN
(PDF, 10.0 MB)
Esploso + Lista ricambi / Parts breakdown + Parts list
(PDF, 721.9 KB)
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 5.8 MB)
INVERTER PLASMA IT-EN catalogue
(PDF, 12.6 MB) IT/EN
Eco energy Card
(PDF, 129.5 KB)

Parts and support

Count on our fast support, maintenance and parts supply services to ensure work continuity.

Request support Original parts

Extend your warranty!

Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.

Register your product

Choose Plasma cutting Cebora

Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo

POWER PLASMA 3035/M

Inverter single phase power source with High Frequency Ignitions and Automatic voltage change. Despite its small size and a weight of 13 Kg, POWER PLASMA 3035/M is able to ensure an excellent cutting quality on all metals, new high-strength steels included.

  • Simple and intuitive control panel
  • Synergic setting of the cutting parameters
  • Automatic detection of worn out consumables
  • Automatic detection of torch type and length
  • “Pilot Self-Restart” function to be selected from the panel, which automatically stops and restarts the arc
  • The power source can also be powered by motor-driven generators of appropriate power (6 kVA)

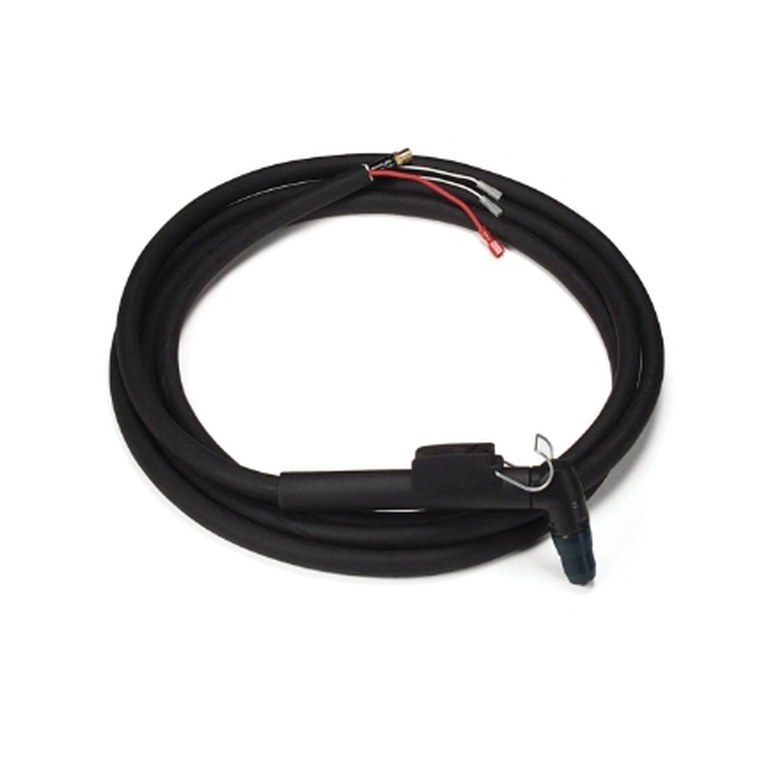

[Art. 279]  Power source supplied with hand torch CEBORA CP 40 – 12 m, grown lead (4 m - 10 mm²) and clamp; Fixed adapter

Art. 279 Technical Specifications

115 V
50/60 Hz
+ 15% / -20%

230 V
50/60 Hz
+ 15% / -20%

Alimentazione monofase
Single phase input

32 A

16 A

Fusibile ritardato
Fuse rating (slow blow)
missing image file

3,5 kVA 35%
2,8 kVA 60%
2,4 kVA 100%

Potenza assorbita
Input power
campo di regolazione corrente

5 ÷ 30A

Campo di regolazione della corrente
Current adjustment range
missing image file

30 A 35%
25 A 60%
22 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

ELECTRONIC

Regolazione continua
Stepless regulation

8 - 12 - (15) mm
1/3” - 1/2” (5/8”)

Spessori su acciaio: Raccomandato - Max - (Separazione)
Thickness on steel: Recommended - Max - (Severance)

60 l/min @ 3,5 bar

Consumo aria
Air consumption

IP23S

Grado di protezione
Protection class

13 Kg

Peso
Weight

175x503x400 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)

  • Light metal fabrication
  • Handcrafting
  • Food Industry
  • Body shop
  • Routine maintenance
  • Agricultural industry
  • Equipaggiamento mezzi di soccorso
  • Construction of tanks
