Plasma PROF HQC Chopper
Sectors
Automation
PLASMA PROF 420 HQC
[Art. 960]
Mild Steel Stainless Steel Aluminium O2-Air H35-N2 N2 -H2O H35-N2 N2 - H2O 50 mm 40 mm n.d. 40 mm n.dMULTIVOLTAGE THREE-PHASE POWER SOURCE FOR HIGH QUALITY CUTTING
Quality piercing:
Benefits
Software updating in few seconds
Possibility to choose digital or analogic interface
Simple programming thanks to Sinergic Gas Console
Water Secondary Console for a high-perfomance Aluminum and Steel cut
Our power sources have got International Certifications and Approvals
Download
HQC catalogue
(PDF, 11.8 MB)
IT/EN
Manuale di Istruzioni / Instruction manual
(PDF, 35.7 MB)
IT/EN
Eco energy Card
(PDF, 129.8 KB)
PROFIBUS Instruction Manual
(PDF, 256.5 KB)
CANopen / EtherCAT Instruction Manuals
(PDF, 399.9 KB)
Parts and support
Count on our fast support, maintenance and parts supply services to ensure work continuity.
Extend your warranty!
Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.
Choose Plasma cutting Cebora
Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo
PLASMA PROF 420 HQC
Multi-voltage three-phase (380/400V-415/440V 50/60Hz) power source with Chopper tecnology for High Quality Cutting. PLASMA PROF 420 HQC is equipped with automatic system for plasma cutting with the following configurations: CNC or Robot configuration with Analogic or Digital interface. It comes without cooling unit.
- Top-quality ARM microprocessor
- New and extremely reliable hardware e software
- Flexibility in the adjustment of the cutting current
- USB port for the software update
- CP 450G Torch consistent with all the HQC CEBORA power sources, both for 2D and 3D, up to 45 degree tilt angle
- PGC Synergic Manual Gas Console: designed to manage the cutting parameters in a user-friendly way
- APGC Automatic Gas Console: to control in real-time all the gas flows and the automatic switch between cutting and marking
- HQC CONTROL PANEL, a digital touchscreen remote control panel (suitable for automatic partially integrated systems )
- Water Secondary Console, for stainless steel and aluminium cutting using water like a secondary fluid. Designed for Manual and Automatic Gas Console
- HF and Gas valves Unit that integrates the two components in a single one, just using CP 540G Cebora torch for any CNC machine size
--
- Art. 960.00 Power source version with Analogic interface
- Art. 960.40 Power source version with CANopen Digital interface
- Art. 960.41 Power source version with PROFIBUS Digital interface
- Art. 960.42 Power source version with DeviceNet Digital interface
- Art. 960.43 Power source version with EtherCAT Digital interface
- Art. 960.44 Power source version with EtherNet/IP Digital interface
Special consumables for Mild Steel:
- 50 A Speed, to increase the cutting speed while keeping top performance
- 120 A EXP (EXtreme Piercing) to pierce heavy thicknesses without oversizing the HQC system
- 250 A QPC (Quality Production Cutting) to get the best compromise between quality and productivity
| Art. | 960 | Technical Specifications |  |
|---|---|---|---|
 |
380/400 V |
Alimentazione trifase |
|
 |
175 A |
Fusibile ritardato |
|
 |
81 kW |
Potenza di installazione max |
|
 |
90 kVA 100% |
Potenza assorbita |
|
 |
5 A ÷ 420 A |
Campo di regolazione della corrente |
|
 |
420 A 100% |
Fattore di servizio (10 min. 40° C) |
|
 |
ELECTRONIC |
Regolazione continua Stepless regulation |
|
 |
IP21S |
Grado di protezione |
|
 |
721 kg |
Peso |
|
 |
900x976x1376 mm |
Dimensioni (LxPxH) |
|
-
CEBORA CP 450 G DAR SHIELDED Robot Torch
[Art. 1223.02] -
CEBORA CP 450 G SHIELDED torch for CNC (294 mm)
[Art. 1224] -
CEBORA CP 450 G SHIELDED torch for CNC (386 mm)
[Art. 1225] -
PGC-D manual gas console
[Art. 480] -
APGC - Automatic gas console
[Art. 466.01] -
HV 19/1 ignition unit
[Art. 464] -
PGC-H2 manual gas console
[Art. 487] -
Gas valve unit
[Art. 469] -
HF unit + gas valves (Robot)
[Art. 462] -

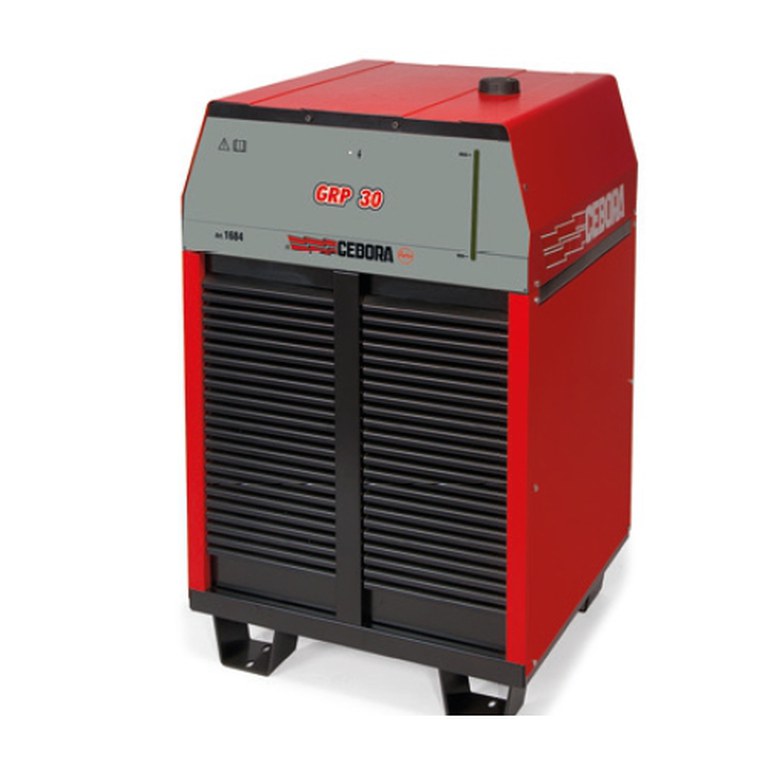

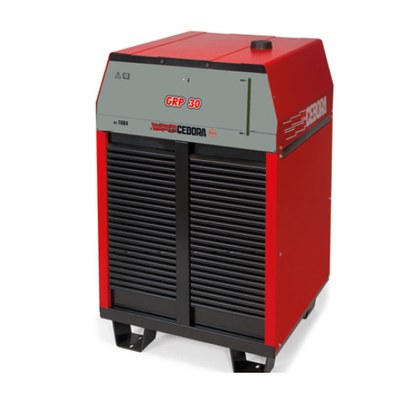

Cooling unit for Art. 960.
[Art. 1684] -
HF unit + gas valves (CNC)
[Art. 459] -
WSC - Water Secondary Console
[Art. 485] -
Remote panel for automatic gas console
[Art. 460.01] -
Coolant
[Art. 1514] -

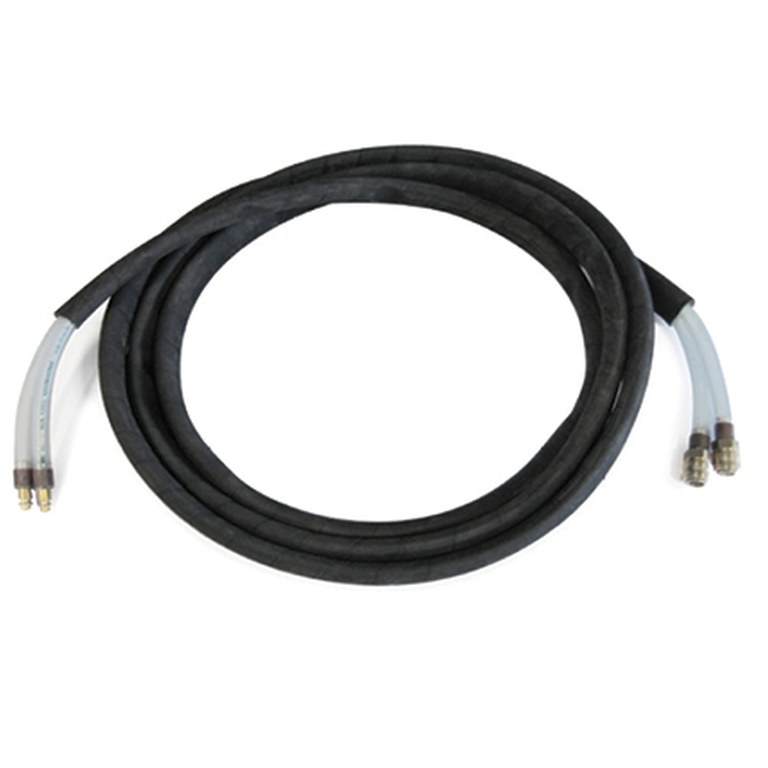

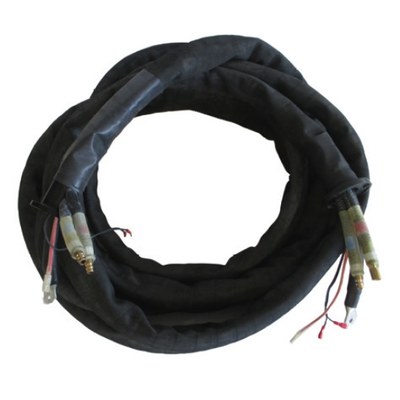

Connection between power source and gas console
[Art. 1189] -

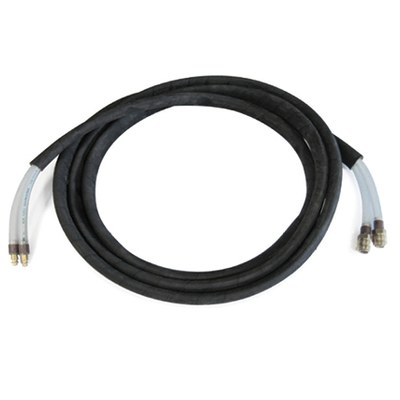

Gas connection between console and gas valve unit
[Art. 1166] -
Connection between power source and ignition unit (HQC 420A)
[Art. 1159] -

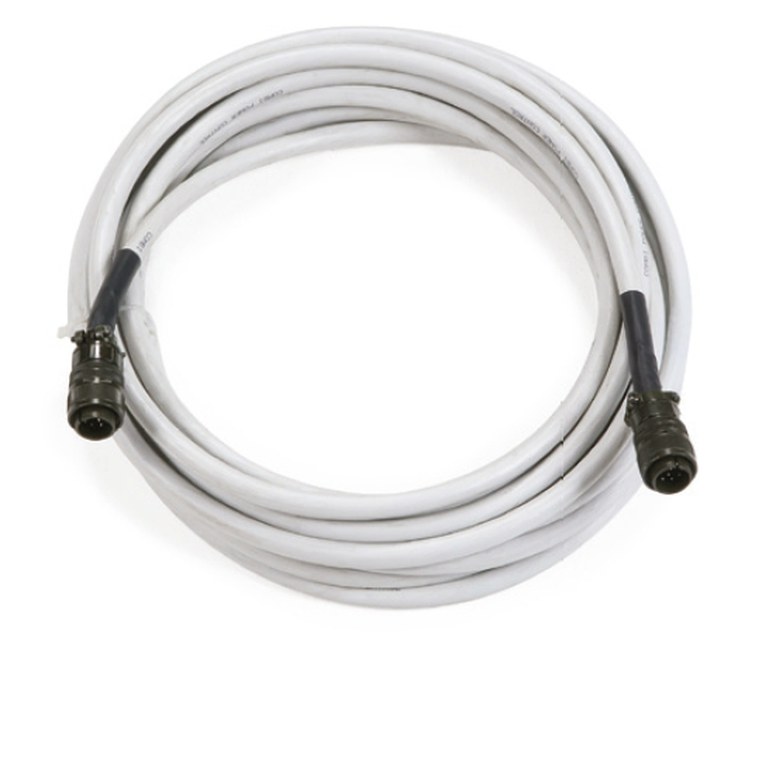

Connection between power source and panel
[Art. 1199] -

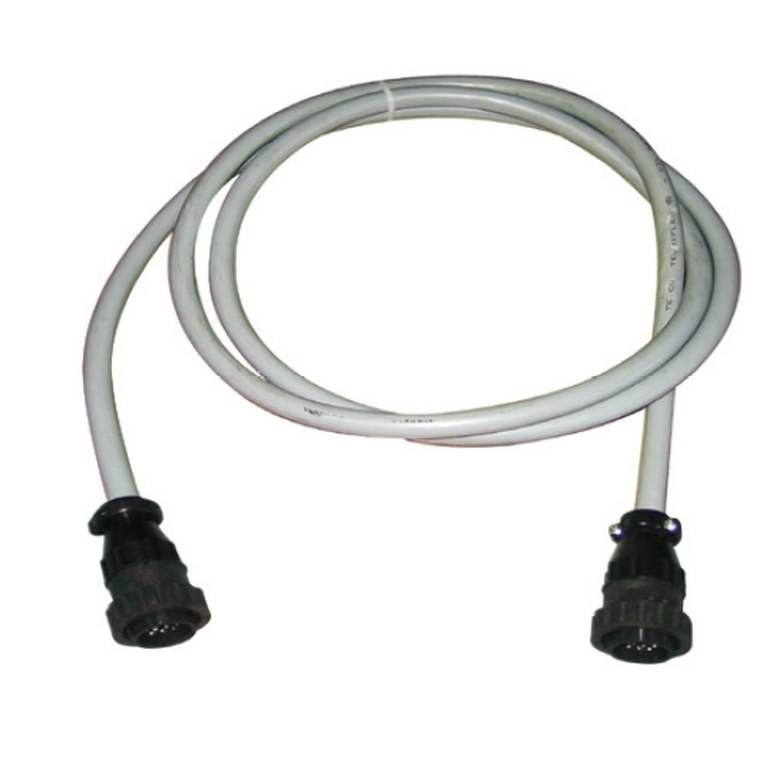

Connection between CNC and power source
[Art. 1200] -

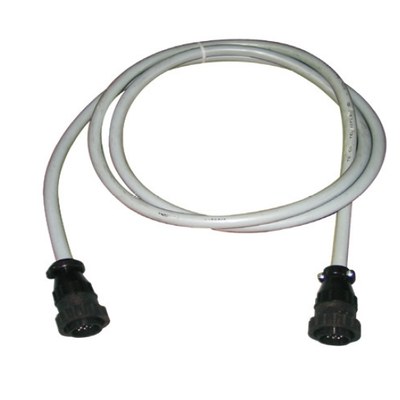

Extension lead for Art. 960 and cooling unit
[Art.1156] -

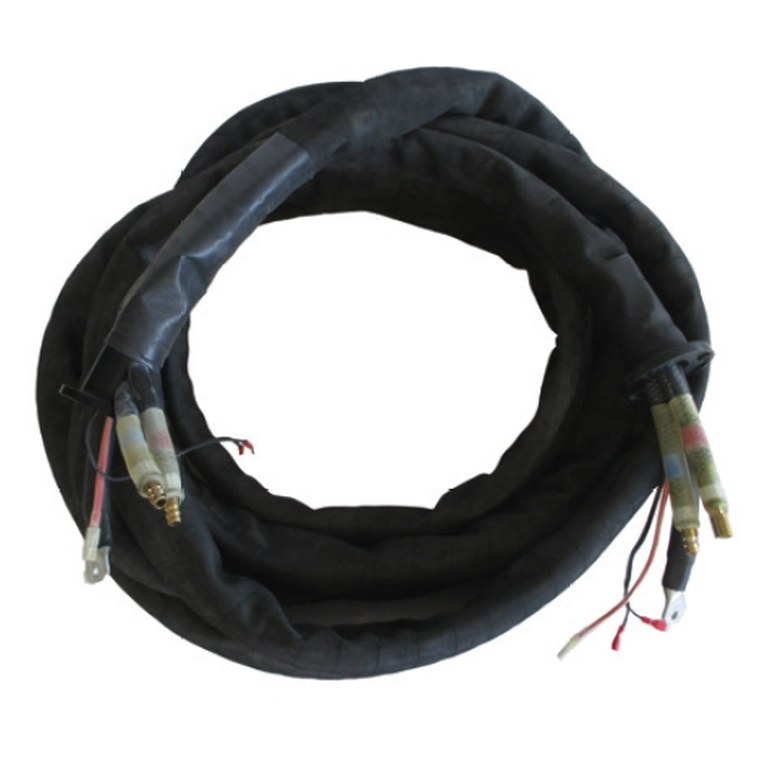

Power connection between cooling unit and Art. 960
[Art. 2050] -

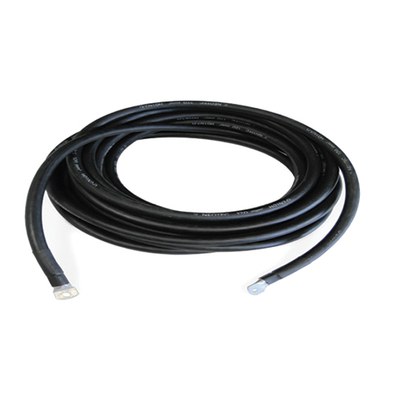

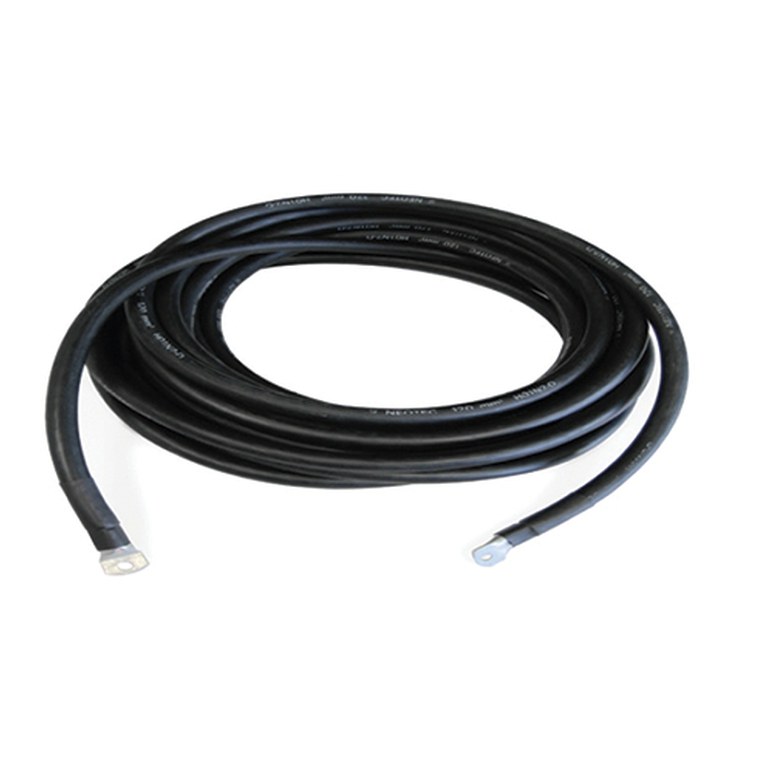

Work return lead (12 m - 120 mm²)
[Art. 1292.10] -
Extended analog interface kit
[Art. 425]
CNC SYSTEM LAYOUT
- [Art. 1223.02] CEBORA CP450 ROBOT torch. Shielded with short handle(294 mm). Length 1,5 m. N.B. Other length on request
- [Art. 470] Manual gas Console [Art. 466] Automatic gas Console
- [Art. 469] Gas valve units + [Art. 464] HV19/1 ignition unit or [Art. 459] Ignition unit / plasma valves unit
- [Art. 1166] Gas connection between console [Art. 470/ 466] and gas valve units
- [Art. 1159] Gas connection between power source and ignition unit (HQC 120A and HQC 250A)
- [Art. 1189] Extension lead between power source and console
- [Art. 1200] Connection between CNC and power source
CNC SYSTEM LAYOUT WITH ANALOGIC INTERFACE
CNC SYSTEM LAYOUT WITH DIGITAL INTERFACE
CONFIGURAZIONE SISTEMA SU ROBOT
- [Art. 1223.02] CEBORA CP450 ROBOT torch. Shielded with short handle (294 mm)
- [Art. 470] Manual gas Console [Art. 466] Automatic gas Console
- [Art. 462] HF unit + gas valvole unit
- [Art. 1166] Gas connection between console[Art. 470/ 466] and gas valve units
- [Art. 1169] Gas connection between power source and ignition unit
- [Art. 1189] Extension lead between power source and console
- [Art. 1200] Connection between CNC and power source
