Plasma Inverter Three-phase

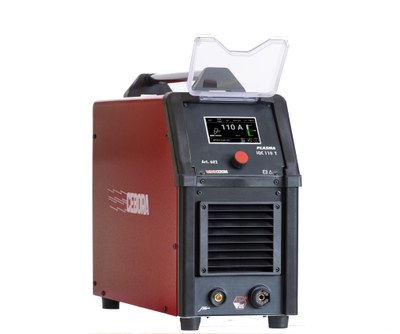

PLASMA iQC 110 T
[Art. 602]
To be compulsorily coupled to CP 180C MAR [Art. 2020] or DAR [2021] torchMULTI-VOLTAGE INVERTER THREE-PHASE POWER SOURCE FOR PLASMA CUTTING. ‘ON AIR’ IGNITION
208/220/230 V 400/440 V 50/60 Hz ± 10%
Thickness on mild steel:
35 mm: reccomended
40 mm: maximum
50 mm: severance
25 mm: pierce capacity
Benefits
Ecrã LCD a cores simples e intuitivo
Para ser acoplado com a nova tocha com adaptador Esafast®
Funções adicionais: Fast Restart, Spot, Mark, Gouge
Kit "Plasma Synergy" com regulador de pressão automático
Our power sources have got International Certifications and Approvals
Download
Catalogue PLASMA iQC
(PDF, 5.5 MB)
C523 R1 IT-EN
Parts and support
Count on our fast support, maintenance and parts supply services to ensure work continuity.
Extend your warranty!
Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.
Choose Plasma cutting Cebora
Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo
PLASMA iQC 110 T
The new iQC plasma cutting line consists of three-phase multitension power source (208-220-230 V / 400-440V 50-60 Hz) with digital inverter technology featuring "ON AIR" ignition and torch recognition system via hardware key.
- Control panel with 4.3" high-resolution color LCD display
- Synergistic setting of cutting parameters
- Display of the number and duration of ignitions and total cutting time
- Automatic recognition of torch model, type, and length via hardware key.
- Color graphical display of the set of consumables in use
- "Fast Restart" (designed for continuous cutting of metal meshes without extinguishing the pilot arc) and "Spot" functions
- Operating modes:
- Gas cutting: Air and nitrogen N2
- Gas marking: Air (up to 5 A)
- Gouging (Maximum material removal quantity: 10.1 kg/h) - New CEBORA CP180C torch (Art. 2020 - 2021) to be compulsorily coupled with the power source with lengths of 6 and 15 meters (MAR and DAR) with ESAFast® adaptor. ESAFast® is the new 11-pin centralized adaptor with a pleasant and compact hexagonal design, from which it draws inspiration.
- Possibility to update the software via USB stick.
- Power source suitable for power motor-generators with a capacity equal to 1.5 times the generator power, even if not equipped with AVR (Automatic Voltage Regulator).
- "Plasma synergy" kit with automatic pressure regulator (Art. 503)
Ideal solution for a fully automated plasma cutting system, suitable for every material and working condition, which allows:
- Real-time gas regulation and control;
- Automatic management of cutting, marking, gouging, and gouging processes;
- Automatic setting of cutting parameters based solely on material and thickness.
| Art. | 602 | Technical Specifications |  |
|
|---|---|---|---|---|
 |
208/220/230V |
400/440V |
Alimentazione trifase |
|
 |
40 A |
25 A |
Fusibile ritardato |
|
 |
14 kVA 50% |
16,2 kVA 60% |
Potenza assorbita |
|
 |
10 ÷ 100 A |
10 ÷ 110 A |
Campo di regolazione della corrente |
|
 |
100 A 50% |
110 A 60% |
Fattore di servizio (10 min. 40° C) |
|
 |
ELECTRONIC |
Regolazione continua |
||
 |
35 - 40 - (50) mm |
Spessori su acciaio: Raccomandato - Max - (Separazione) - |
||
 |
295 l/min @ 6,0 bar |
Consumo aria |
||
 |
IP23S |
Grado di protezione |
||
 |
39 Kg |
Peso |
||
 |
232X708X477 mm |
Dimensioni (LxPxH) |
||
- Chemical industry
- Heavy metal fabrication
- Building and road construction industry
- Handcrafting
- Food Industry
- Industrial & Energy plant
- Construction of agricultural,railway and heavy vehicles
- Off-shore industry
- Miniere
