MIG/MAG Inverter Three-phase
Sectors
Automotive
SYNSTAR TWIN 270 T
[Art. 344]
INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MIG/MAG WELDING WITH DOUBLE WIRE FEED UNIT
400V 50/60 Hz +15%/ -20%
Benefits
User-friendly LCD Display
Pulse and Double Pulse functions included
4-roller double wire feed unit and over 70 welding programs
Software updating in few seconds
Our power sources have got International Certifications and Approvals
Download
Brochure SYNSTAR TWIN 270 T Art.344 C479 IT-EN
(PDF, 11.0 MB)
Lista curve sinergiche / List of the synergic curves
(PDF, 54.8 KB)
ListaRicambi-SpareParts#344#Multilingua#3301119.pdf
(PDF, 2.1 MB)
Eco Energy Card
(PDF, 129.4 KB)
Parts and support
Count on our fast support, maintenance and parts supply services to ensure work continuity.
Extend your warranty!
Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.
Choose MIG/MAG Cebora
Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo
SYNSTAR TWIN 270 T
The new SYNSTAR TWIN 270 T is a synergyc and inverter three-phase power source for MIG/MAG welding. It's particularly recommended to weld MIG brazing and welding galvanized sheet metal, high-strength steels and aluminum
- li>Cebora double aluminium 4-roller-wire feed unit ( Ø 30 mm)
- Equipped with power source transportation trolley, ground lead ( 3,5 m - 35 mm2) and clamp
- Wide range of standard synergic curves for Solid, Stainless steel, Aluminium. It's suitable for welding and brazing galvanized sheet metal, high strength steel and flux-cored alloys. The The microprocessor in the control circuit makes it possible to upgrade, even over a long period, the synergic programs stored in the machine by means of an optional kit (art. 136)
- User-friendly 5" LCD Display
- Pulse upgrade function ,which allows to activate synergic curves dedicated to solid, mild steel, stainless steel, aluminum and CuSi3. It has got more than 75 welding programs
- Double Pulse function

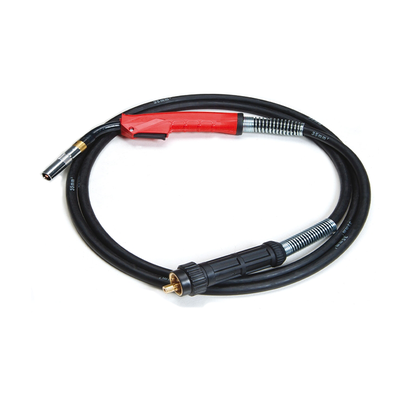

- Two separate 4-roller-wire feed motors, allowing to work with two different types of coils, thus keeping assembled two type of different torches with different wires. (Also CEBORA Push-Pull 2003 torch)
- The power source is supplied with many adjustable functions which can be accessed from the panel, including:
- Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc - SHORT or PULSE process
- Three importants specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler) - >Euro connector allows to use either a MIG standard torch or a Push-Pull 2003 one
- It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm
| Art. | 344 | Technical Specifications | |
|---|---|---|---|
 |
400 V 50/60 Hz |
Alimentazione trifase |
|
 |
16 A |
Fusibile ritardato |
|
 |
9,0 kVA 20% |
Potenza assorbita |
|
 |
20A ÷ 270A |
Corrente min.-max. ottenibile in saldatura |
|
 |
270A 20% |
Fattore di servizio (10 min. 40° C) |
|
 |
Electronic |
Regolazione continua |
|
 |
0,6/0,8/0,9/1,0/1,2 Fe |
Curve sinergiche in dotazione standard |
|
 |
Ø 200 mm |
Bobina filo trainabile max. |
|
 |
IP23S |
Grado di protezione |
|
 |
76 kg |
Peso |
|
 |
588x945x985 mm |
Dimensioni (LxPxH) |
|
- Light metal fabrication
- Handcrafting
- Body shop
- Routine maintenance
- Agricultural industry
- Equipment for means of emergency
