MIG/MAG Inverter Three-phase

Sectors

Industry, Automation

KINGSTAR 520 TS ROBOT

[Art. 374.80]

INVERTER THREE-PHASE POWER SOURCE FOR MIG/MAG WELDING

icons8-electrical-35.png  400 V 50/60 Hz   +15%/ -20%

Benefits

Suitable for SWPS special package

User-friendly LCD touchscreen Display

Pre-arranged for Pulse, Double Pulse and SRS

4- roller double wire feed unit and over 100 synergic curves

Gestione da remoto e backup dati

Compliant with Industry 4.0

 Our power sources have got International Certifications and Approvals



Download

Brochure SWPS IT-EN
(PDF, 6.9 MB)
Storia degli aggiornamenti / Update history - Rel. 1.15 (31/05/24)
(PDF, 361.2 KB)
Lista curve sinergiche / List of the synergic curves
(PDF, 432.0 KB)
Automation MIG - Kingstar catalogue
(PDF, 2.7 MB) EN
Digital protocols - Instruction manual
(PDF, 2.2 MB)
Eco Energy Card
(PDF, 129.7 KB)
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 7.3 MB)
Instruction Manual
(PDF, 733.2 KB) For Art. 809
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 263.7 KB) Quality control - Art. 273
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 349.8 KB) MQTT - Art. 817

Parts and support

Count on our fast support, maintenance and parts supply services to ensure work continuity.

Request support Original parts

Extend your warranty!

Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.

Register your product

Choose MIG/MAG Cebora

Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo

KINGSTAR 520 TS ROBOT

KINGSTAR 520 TS ROBOT is a inverter three-phase power source (400 V 50/60 Hz +15% / -20%) for MIG/MAG. It belongs to the Cebora range in the automation and robotic line

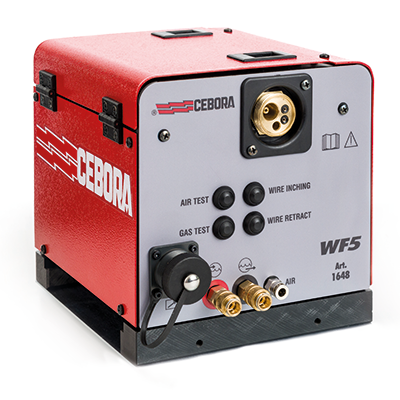

  • Cebora ROBOT aluminium 4-roller-wire feed unit (Ø 37 mm)
  • Equipped with ground lead (3,5 m - 70 mm²)
  • Pre-arranged for cooling unit
  • 7 "LCD touchscreen display
  • Equipped with robot digital CANopen interface; Further digital or analogic interfaces on request
  • MIG SHORT HD (High Deposit) and MIG ROOT (First Pass) functions
  • Upgrade MIG Pulse and HD Pulse [Art. 231.89]
  • Upgrade MIG double current level function [Art. 233.89]
  • Upgrade MIG Double Pulse  [Art. 231.89 + 233.89]
  • Advanced users: software package for the advanced users management [Art. 809]
  • Quality control: software package for the quality control [Art. 273]
  • Production mode: software package for production management [Art. 817]
  • System calibration procedure which allows complete adjustment of all welding parameters and process variables (from the features of the welding torch, to the extension lead used between the transporting trolley and the power source);
  • SWPS Package according to ISO 151612 which meets the qualification requirements of the procedures according to EN 1090-1; [Art. 808]
  • Easily removable cooling grille
  • Power source / wire feed connection with bayonet connector compliant with MIL-C-SS 116 standards that eliminates the problem of inserting and fixing the signal cable;
  • USB port for software update
  • Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
  • Remote control mode from personal computer, tablet or smartphone
  • Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices

[Art. 374.85] Strong version on request with 50/60 Hz, (200) – 220 – 440 – 480 V, three-phase autotransformer

Art. 374.80 Techinal Specifications

MIG - MAG

400 V 50/60 Hz
+15% / -20%

Alimentazione trifase
Three phase input

40 A

Fusibile ritardato
Fuse rating (slow blow)

25,8 kVA 40%
23,7 kVA 60%
20,7 kVA 100%

Potenza assorbita
Input power

10 ÷ 520 A

Corrente min.-max. ottenibile in saldatura
Min.-max. current that can be obtained in welding

500 A 40%
470 A 60%
440 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

Electronic

Regolazione continua
Stepless regulation

0,8/0,9/1,0/1,2/1,6 Fe
0,9/1,0/1,2/1,6 Al
0,8/0,9/1,0/1,2/1,6 Inox
0,8/0,9/1,0/1,2 Cu-Si 3%
0,8/1,0/1,2/1,6 Cu-Al8 (AlBz8)
1,2/1,6 Cored

Filo utilizzabile
Wire sizes that can be used

Ø 300 mm/15 kg

Bobina filo trainabile max.
Max. wire spool size

Ø 1,5 ÷ 6,0

Elettrodi utilizzabili
Electrodes that can be used

IP23S

Grado di protezione
Protection class

95 kg

Peso
Weight

410x860x820 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)
