EVO 450 TS SYNERGIC

[Art. 647]

MULTI-VOLTAGE THREE-PHASE MIG/MAG WELDING MACHINE WITH SEPARATE WIRE FEED UNIT  AND STEP ADJUSTMENT

  230 V - 400 V  50/60 Hz

Benefits

Sturdy power source, designed to face extreme conditions of use

Wide range of standard synergic curves

Possibility of using Cebora Push-Pull torch 2003

Designed for the water torch cooling

 Our power sources have got International Certifications and Approvals



Download

Brochure MIG EVO SYNERGIC Art. 641-643-647 C377 IT-EN
(PDF, 16.1 MB)
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 9.4 MB)
Lista curve sinergiche / List of the synergic curves
(PDF, 2.9 MB)
ListaRicambi-SpareParts#647#Multilingua#3301130.pdf
(PDF, 627.2 KB)

Parts and support

Count on our fast support, maintenance and parts supply services to ensure work continuity.

Request support Original parts

Extend your warranty!

Just bought a new Cebora welding power source? Register your product within 15 days to extend your warranty from 12 to 24 months.

Register your product

Choose MIG/MAG Cebora

Are you interested in the product? Check where to find and how to contact a Cebora dealer!
Where to find it
Do you need more information? Contact us and our help desk will be happy to solve all your doubts
Contact us
Are you interested in the product, but would you like further guarantees to know if it's right for you?
Request a demo

EVO 450 TS SYNERGIC

The EVO 450 TS Synergic is a compact and sturdy power source easy to use thanks to its traditional electromechanical technology

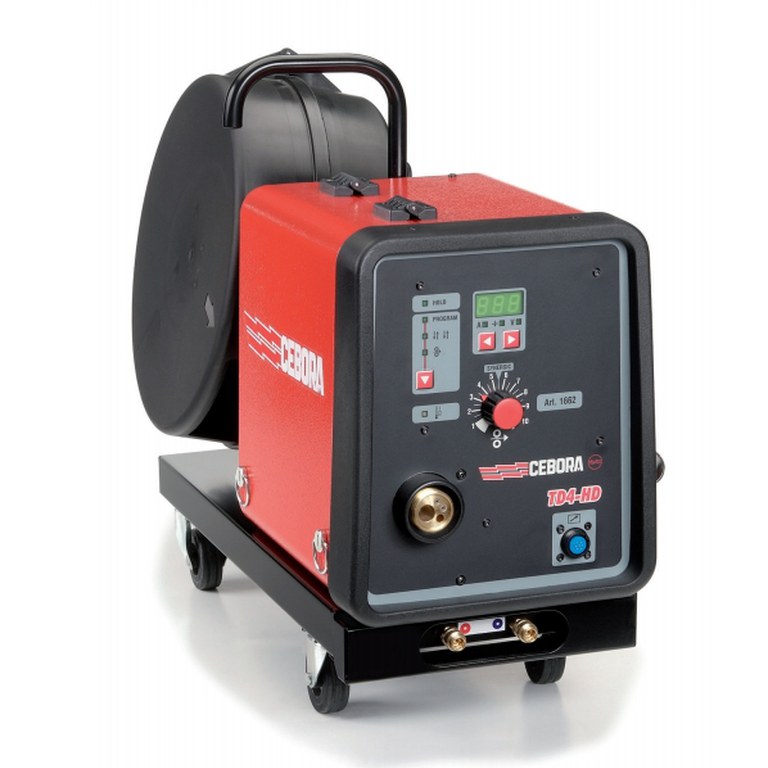

    • Cebora aluminium 4-roller-wire feed unit (Ø 40 mm)
    • Ground lead ( 3,5 m - 95 mm2) and clamp
    • Digital control board equipped with an ammeter showing the saved synergic curves (Solid,St. steel,Alu, Cu-Si3))
    • Digital control board equipped with an ammeter showing the saved synergic curves (Solid,St. steel,Alu, CuSi3)
    • It's also suitable for welding and brazing galvanized sheet metal, high strength steel and flux-cored.
    • The power source is supplied with many adjustable functions which can be accessed from the panel, including: Post-gas, Soft Start, Spot Time, Pause Time, Inductance, Burn Back
    • It can be used with air-cooled MIG torches. For heavyduty use, the optional modular cooling unit (Art. 1680) may be installed on the machine, allowing the use of water-cooled MIG torches.
    • Connecting the Cebora 2003 Push-Pull torch, the power source can also be suitable for welding aluminium

    Art. 647 Technical Specifications

    230 V 50/60 Hz
    ± 10%

    400 V
    50/60 Hz
    ± 10%

    Alimentazione trifase
    Three phase input

    50 A

    32 A

    Fusibile ritardato
    Fuse rating (slow blow)

    23,5 kVA 40%
    16,6 kVA 60%
    11,8 kVA 100%

    Potenza assorbita
    Input power

    40 ÷ 500 A

    Corrente min.-max. ottenibile in saldatura
    Min.-max. current that can be obtained in welding

    450 A 40%
    370 A 60%
    290 A 100%

    Fattore di servizio (10 min. 40° C)
    Secondo norme IEC 60974-1
    Duty Cycle (10 min.40°C)
    According to IEC 60974-1

    4x8

    N° posizioni di regolazione
    Number of regulation steps

    0,8/0,9/1,0/1,2/1,6 Fe
    0,9/1,0/1,2/1,6 Al
    0,8/0,9/1,0/1,2 Inox
    0,9 Cu-Si 3%
    1,2 Cored

    Filo utilizzabile
    Wire sizes that can be used

    Ø 300 mm/15 kg

    Bobina filo trainabile max.
    Max. wire spool size

    IP21S

    Grado di protezione
    Protection class

    125 kg

    Peso
    Weight

    615x975x900 mm

    Dimensioni (LxPxH)
    Dimensions (WxLxH)

    • Heavy metal fabrication
    • Construction
    • Building and road construction industry
    • Handcrafting
    • Construction of agricultural, railway and heavy vehicles
