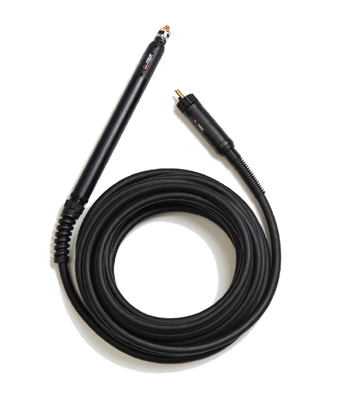

CEBORA CP 71C DAR torch
[Art. 1630 - 1630.15]
CEBORA CP 71C original torch for plasma cutting. On air ignition.
- [Art. 1630] 6 m - torch for profile machine. With Esafast adaptor
- [Art. 1630.15] 15 m torch for profile machine. With Esafast adaptor
Must be coupled with [Art. 502]
The registered trademark CP identifies Cebora original consumables for plasma power sources.Cebora strongly recommends the use of original CP consumables, as they are the only parts capable of guaranteeing the expected power source-torch combination performance. The geometry and materials chosen for CP consumables are decided when the power source and the torch are designed, and represent the best compromise between part performance, reliability and lifetime, in compliance with IEC 60974-7 standards.

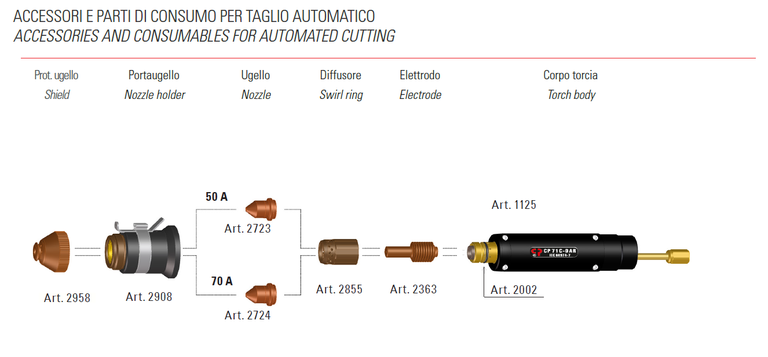

| Art. | Description |
|---|---|
| 1125 | Torch body for straight torches |
|
2002 |
Pack of sealing rings (5 parts) |
|
2723 |
Pack of 0.9 mm dia. nozzles (10 parts). Use from 20 to 45 A |
|
2724 |
Pack of 1.1 mm dia. nozzles (10 parts). Use from 46 to 70 A |
| 2958 | Nozzle shield (2 parts) |
|
2363 |
Pack of electrodes (5 parts). |
|
2908 |
Nozzle holder |
|
2855 |
Diffuser (2 parts) |
