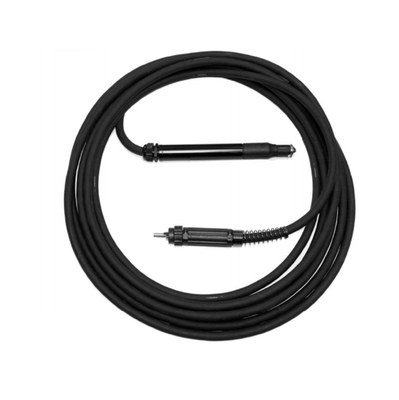

CEBORA CP 162C DAR torch
[Art. 1632 - 1632.15]
CEBORA CP 162C original torch for plasma cutting. On air ignition. Without high-frequency
- [Art. 1632] 6 m - torch for profile machine. With central adaptor
- [Art. 1632.15] 15 m - torch for profile machine. With central adaptor
Must be coupled with [Art. 433]
Download
Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 4.6 MB)
IT/EN/DE/FR/ES
Tabelle di Taglio / Cutting tables
(PDF, 3.3 MB)
#Multilingua#3300514-F
The registered trademark CP identifies Cebora original consumables for plasma power sources.Cebora strongly recommends the use of original CP consumables, as they are the only parts capable of guaranteeing the expected power source-torch combination performance. The geometry and materials chosen for CP consumables are decided when the power source and the torch are designed, and represent the best compromise between part performance, reliability and lifetime, in compliance with IEC 60974-7 standards.
| Technical specifications |  |
||
|---|---|---|---|
 |
125 A 60% |
Service factor (10 min. 40° C) |
|
 |
6 m (20 ft) |
Length Art. 1632 |
|
 |
4.200 kg |
Weight Art. 1632 |
|

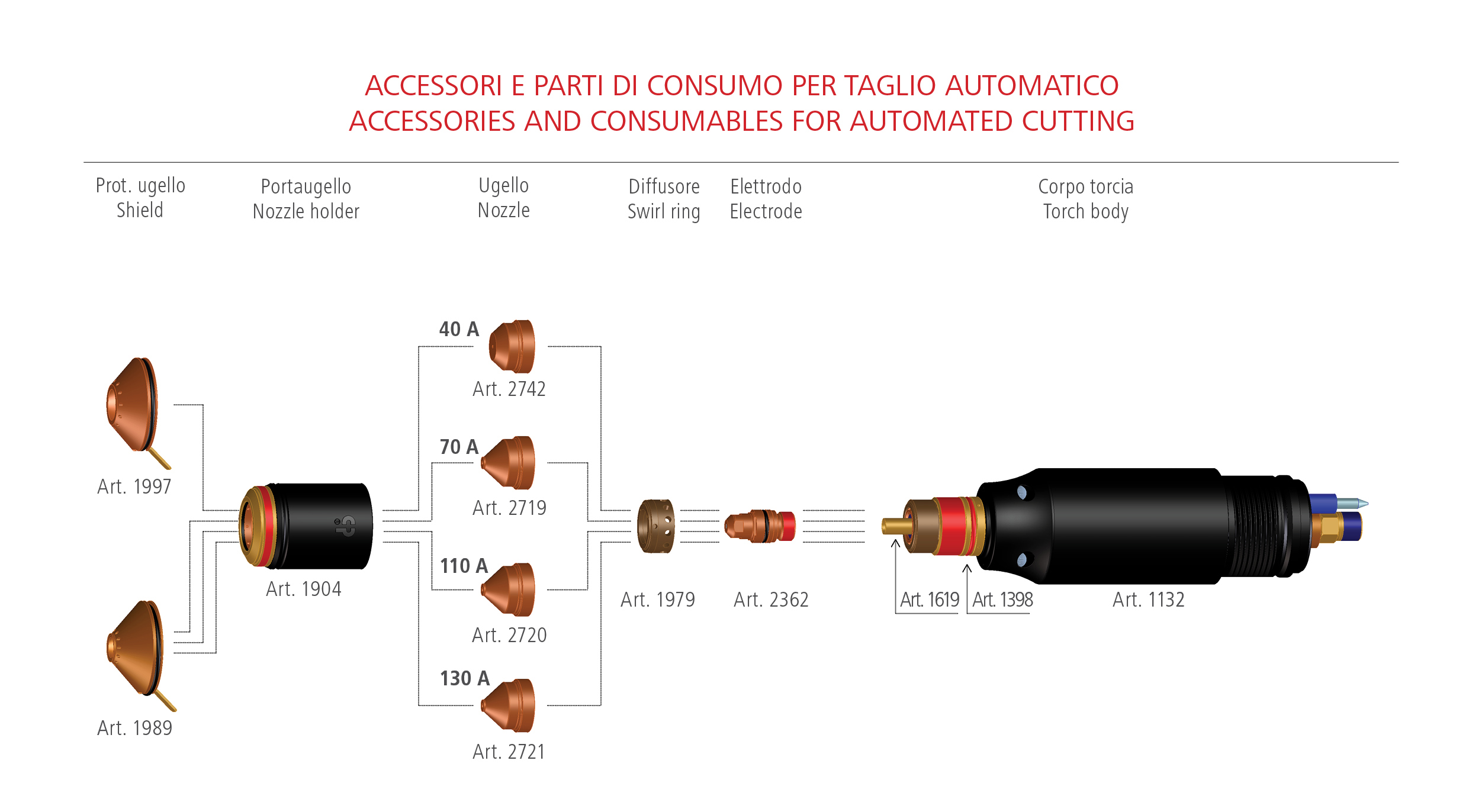

| Art. | Description |
|---|---|
| 1632 | Cebora CP162C DAR 6 m straight torch - Snap-on |
|
1632.15 |
Cebora CP162C DAR 15 m straight torch - Snap-on |
|
1132 |
Torch body for straight torches |
|
1398 |
Pack of sealing rings (5 parts) |
| 2742 | Pack of 0.8 mm dia. nozzles (5 parts). Use from 20 to 40 A |
|
2719 |
Pack of 1.35 mm dia. nozzles (5 parts). Use from 51 to 70 A |
|
2720 |
Pack of 1.50 mm dia. nozzles (5 parts). Use from 71 to 110 A |
|
2721 |
Pack of 1.65 mm dia. nozzles (5 parts). Use from 111 to 130 A |
|
1989 |
Nozzle shield |
|
1997 |
Nozzle shield |
| 2362 | Pack of electrodes (5 parts). Use from 20 to 130 A |
| 1904 | Nozzle holder |
| 1979 | Diffuser |
| 1619 | Pack of brass cooling pipes (5 parts) |
