CEBORA CP 162C MAR torch

[Art. 1631 - 1631.15]

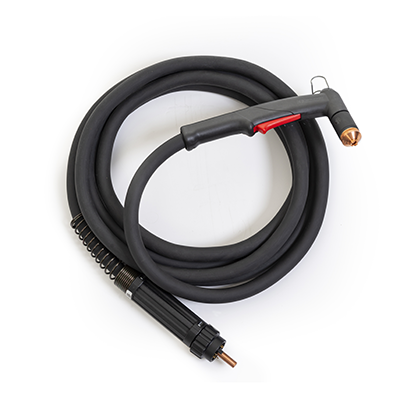

CEBORA CP 162C original torch for plasma cutting. On air ignition. Without high-frequency

  • [Art. 1631] Manual torch 6 m lenght. With central adaptor
  • [Art. 1631.15] Manual torch 15 m lenght. With central adaptor

Download

Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 4.6 MB) IT/EN/DE/FR/ES
Tabelle di Taglio / Cutting tables
(PDF, 3.3 MB) #Multilingua#3300514-F
The registered trademark CP identifies Cebora original consumables for plasma power sources.Cebora strongly recommends the use of original CP consumables, as they are the only parts capable of guaranteeing the expected power source-torch combination performance. The geometry and materials chosen for CP consumables are decided when the power source and the torch are designed, and represent the best compromise between part performance, reliability and lifetime, in compliance with IEC 60974-7 standards.

 Technical specifications

280 A 60%

Service factor (10 min. 40° C)
According to IEC 60974.1 standards

6 m (20 ft)
15 m (50 ft)

Length Art. 1631
Length Art. 1631.15

3.900 kg
9.800 kg

Weight Art. 1631
Weight Art. 1631.15

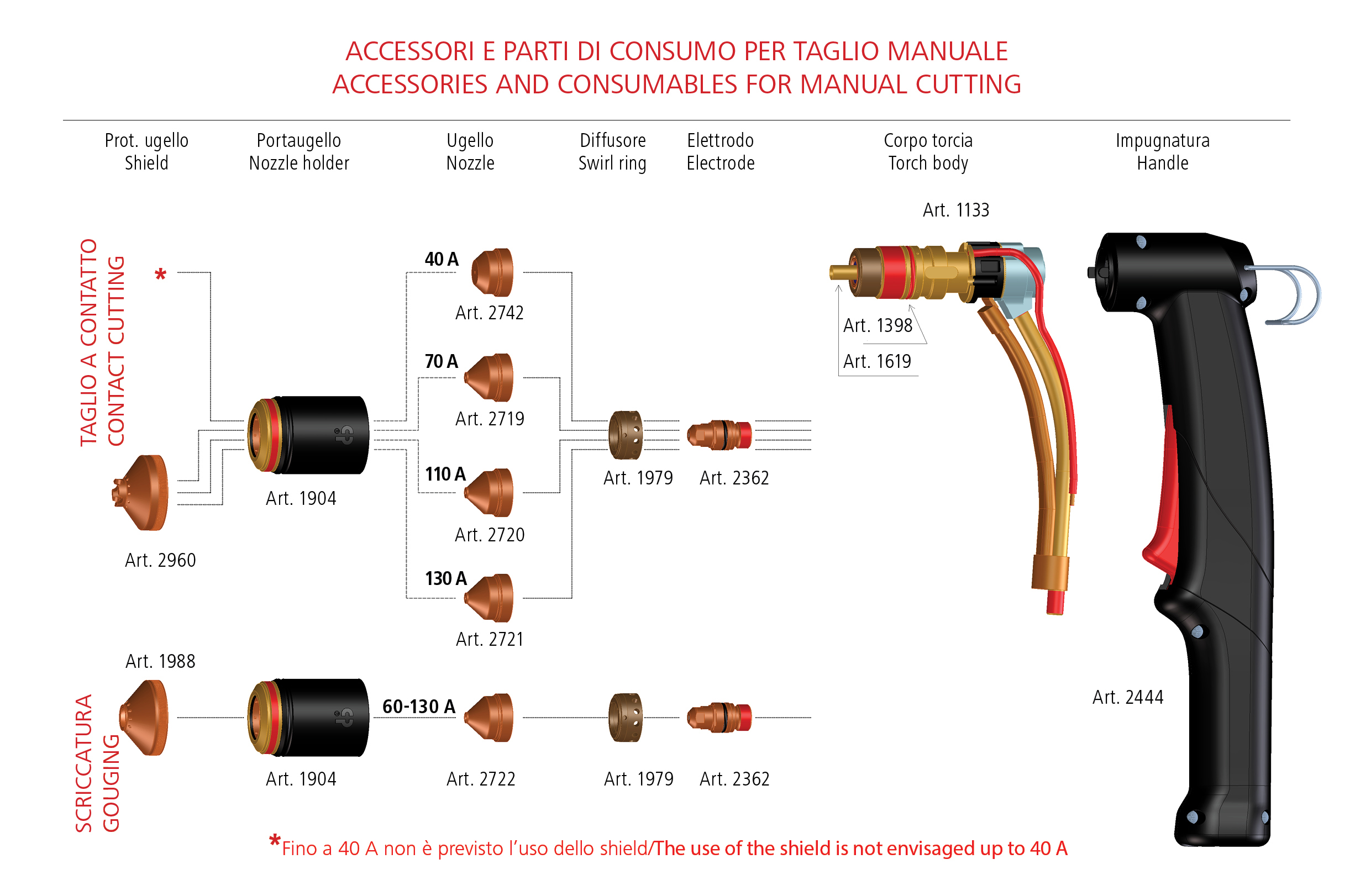

Art. Description

1631

6 m manual torch. Snap-on

1631.15

15 m manual torch Snap-on

1133

Torch body for manual torches

2444

Handpiece assembly

1398

Pack of sealing rings (5 parts)
2742 Pack of 0.8 mm dia. nozzles (5 parts). Use up to 40 A

2719

Pack of 1.35 mm dia. nozzles (5 parts). Use up to 70 A

2720

Pack of 1.50 mm dia. nozzles (5 parts). Use up to 110 A

2721

Pack of 1.65 mm dia. nozzles (5 parts). Use up to 130 A
2722 Pack of 3.10 mm dia. nozzles (5 parts). For gouging
2960 Nozzle shield.

1988

Nozzle shield For gouging
2362 Pack of electrodes (5 parts). Use up to 130 A
1904 Nozzle holder
1979 Diffuser
1619 Pack of brass cooling pipes (5 parts)
407 Compass kit for manual torches
406 Trolley for compass
