CEBORA CP 161 MAR torch

[Art. 1230 - 1230.20]

CP 161 original torch for plasma cutting. High-frequency ignition.

[Art. 1230]  CEBORA CP 161 MAR - 6 m manual torch

[Art. 1230.20]  CEBORA CP 161 MAR - 12 m manual torch

Download

Manuale di Istruzioni / Instruction manual / Manual de instrucciones
(PDF, 6.2 MB) IT/EN/DE/FR/ES
Tabelle di Taglio / Cutting tables
(PDF, 1.3 MB)
The registered trademark CP identifies Cebora original consumables for plasma power sources.Cebora strongly recommends the use of original CP consumables, as they are the only parts capable of guaranteeing the expected power source-torch combination performance. The geometry and materials chosen for CP consumables are decided when the power source and the torch are designed, and represent the best compromise between part performance, reliability and lifetime, in compliance with IEC 60974-7 standards.

 Technical specifications

160 A 60%
120 A 100%

Service factor (10 min. 40° C)
According to IEC 60974.1 standards

6 m (20 ft)
12 m (36 ft)

Length Art. 1230
Length Art. 1230.20

4.220 kg
8.150 kg

Weight Art. 1230
Weight Art. 1230.20

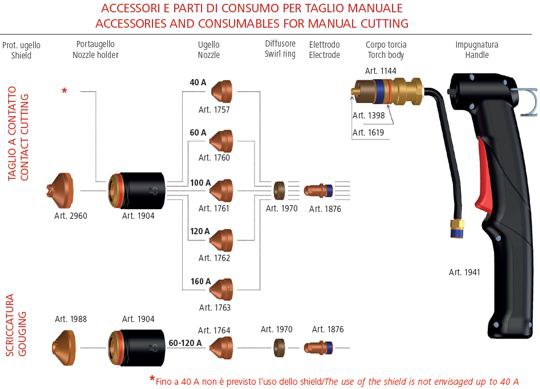

Art. Description
1230 Cebora CP161 MAR 6 m manual torch - Snap-on

1230.20

Cebora CP161 MAR 12 m manual torch - Snap-on

1144

Torch body for manual torches

1941

Handpiece assembly

1398

Pack of sealing rings (5 parts)
1757 Pack of 0.8 mm dia. nozzles (5 parts). Use from 20 to 40 Amp.
For thin panels (thickness 0.5 - 1.2 mm)

1760

Pack of 1.2 mm dia. nozzles (5 parts). Use from 40 to 60 Amp.

1761

Pack of 1.4 mm dia. nozzles (5 parts). Use from 60 to 100 Amp.

1762

Pack of 1.6 mm dia. nozzles (5 parts). Use from 100 to 120 Amp.

1763

Pack of 1.8 mm dia. nozzles (5 parts). Use from 120 to 160 Amp.
1764 Pack of 3 mm dia. nozzles (5 parts). For gouging
2960 Nozzle shield

1988

Nozzle shield For gouging
1876 Pack of electrodes (5 parts). Use from 20 to 160 Amp.
1904 Nozzle holder
1970 Diffuser
1619 Pack of brass cooling pipes (5 parts)
407 Compass kit for manual torches
406 Trolley for compass
